janus lines drawing

DOWNLOAD PLANS GBP250.00

Please click on the button below if you wish to buy full building plans. Note: You can pay using Paypal or with your normal credit card.

 Plans will be sent as a zip file once payment has been received. This is no longer an automated system, so please allow 48 hours for your order to be processed and your plans emailed to you.

If you have not received plans after that time please contact us at This email address is being protected from spambots. You need JavaScript enabled to view it.. We never transfer money from Paypal until your plans are ready to send out. Normally if there is a delay it is because we are away sailing.

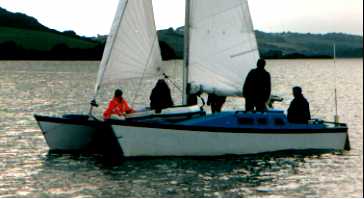

Janus sailing with 6 adults on board

THE FACTS AND FIGURES

Dory shaped ply hulls and decks

LENGTH O.A.6.65m 22ft
LENGTH W.L.6.0m 20ft
BEAM O.A 3.9m 13ft
DISPL (empty) 0.4T 1000lbs
DISPL (to WL) 0.8T 1800lbs
HEADROOM 1.22m 4ft
DRAFT 0.25 - 0.8m 10in - 2ft8in
SAIL AREA 20.9sq m 230sqft

Don't be deceived by Janus' simple dory shaped hulls (which make it a very easy boat to build). It has a lot of internal room for its length and a surprisingly good performance.

Trailering and assembly are easy as the flat bottomed hulls remain upright unsupported.

Janus is the best choice for the less experienced builder or sailor and for those who prefer simplicity

"After we'd reach the bridge we were broad reaching and went very fast indeed. We realised that Richard Woods designs great boats. For what is more fun than leaving with two monohulls of the same size and a few miles further on all you can see are a couple of dots behind?" Mark Offringa - Holland

More on Building a Janus HERE

More on Sailling a Janus HERE

Videos of Janus HERE

Deck and Interior Photos of Janus HERE

Janus owners reports HERE

Janus Materials List HERE

More information about this design can be obtained by purchasing a Study Plan
